Series 1590

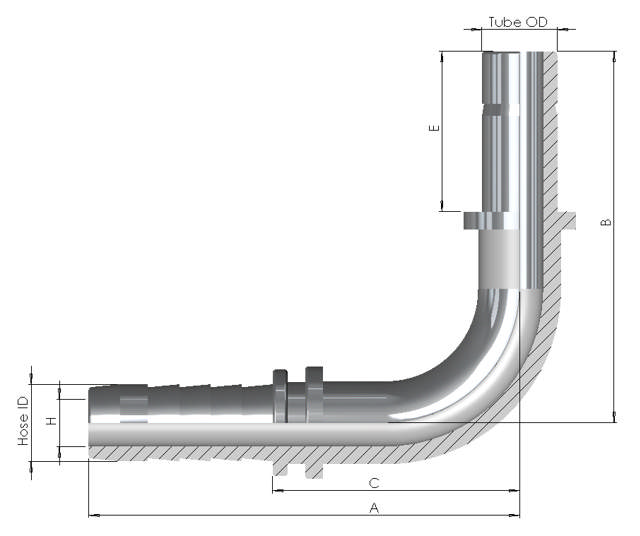

Hose End x Standpipe 90° Imperial
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Hose ID 1 | Tube Inches | A | B | C | E | H | Material Code | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| 15900404316 | 1/4" | 1/4" | 53 | 43 | 30 | 23 | 4 | SS316 | |
| 15900606316 | 3/8" | 3/8" | 64 | 49 | 34 | 25 | 7 | SS316 | |
| 15900808316 | 1/2" | 1/2" | 73 | 57 | 42 | 25 | 8 | SS316 | |
| 15901212316 | 3/4" | 3/4" | 101 | 82 | 63 | 35 | 15 | SS316 | |
| 15901616316 | 1" | 1" | 124 | 102 | 76 | 40 | 19 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
