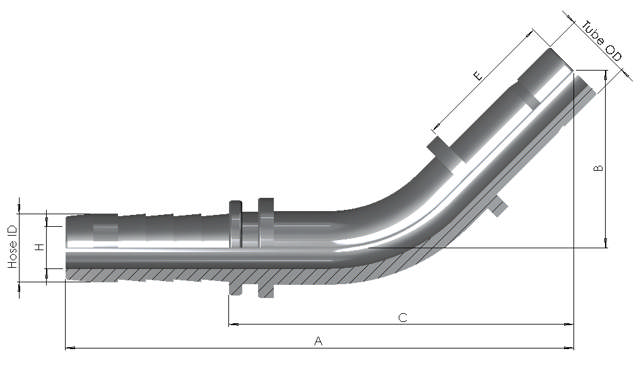

Series 1545
Hose End x Standpipe 45° Imperial
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Hose ID 1 | Tube Inches | A | B | C | E | H | Material Code | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| 15450404316 | 1/4" | 1/4" | 70 | 24 | 47 | 23 | 4 | SS316 | |
| 15450606316 | 3/8" | 3/8" | 86 | 31 | 56 | 25 | 7 | SS316 | |
| 15450808316 | 1/2" | 1/2" | 94 | 31 | 63 | 25 | 8 | SS316 | |
| 15451212316 | 3/4" | 3/4" | 129 | 48 | 91 | 35 | 15 | SS316 | |
| 15451616316 | 1" | 1" | 158 | 55 | 110 | 40 | 19 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
