Series 2890

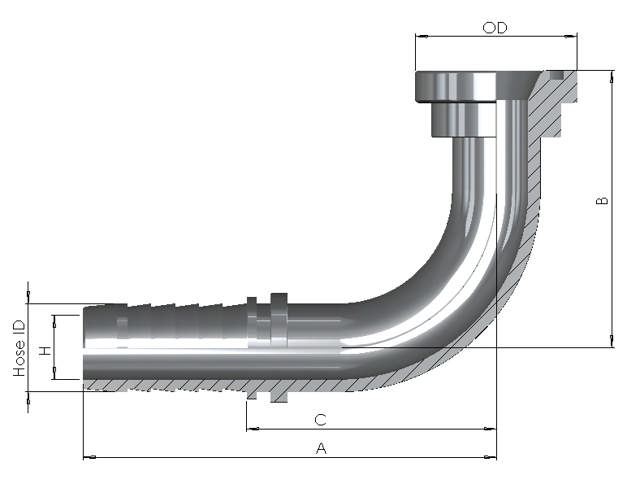

Hose End x SAE6000PS 90°
STANDARD
ISO6162-2/SAE J518
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Hose ID 1 | SAE6000 | A | B | C | H | OD | Material Code | |
|---|---|---|---|---|---|---|---|---|---|
| 28901212316 | 3/4" | 3/4" | 100 | 62 | 62 | 15 | 41.3 | SS316 | |
| 28901616316 | 1" | 1" | 125 | 73 | 77 | 19 | 47.6 | SS316 | |
| 28902020316 | 1 1/4" | 1 1/4" | 155 | 94 | 100 | 24 | 54 | SS316 | |
| 28902424316 | 1 1/2" | 1 1/2" | 175 | 113 | 117 | 30 | 63.5 | SS316 | |
| 28903232316 | 2" | 2" | 225 | 150 | 163 | 40 | 79.4 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
