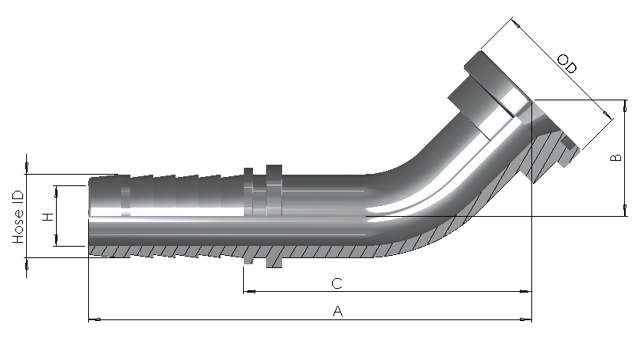

Series 2745
Hose End x SAE3000PSI 45°
STANDARD
ISO6162-1/SAE J518
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Hose ID 1 | SAE3000 | A | B | C | H | OD | Material Code | |
|---|---|---|---|---|---|---|---|---|---|
| 27451212316 | 3/4" | 3/4" | 114 | 33 | 76 | 15 | 38.1 | SS316 | |
| 27451616316 | 1" | 1" | 140 | 37 | 92 | 19 | 44.5 | SS316 | |
| 27452020316 | 1 1/4" | 1 1/4" | 169 | 45 | 114 | 24 | 50.8 | SS316 | |
| 27452424316 | 1 1/2" | 1 1/2" | 191 | 51 | 131 | 30 | 60.3 | SS316 | |
| 27453232316 | 2" | 2" | 243 | 68 | 181 | 40 | 71.4 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
