Series 2300

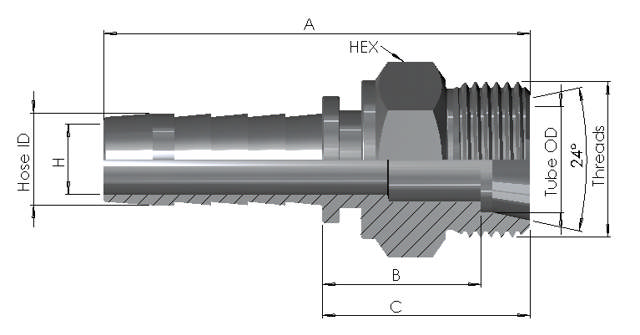

Hose End x Metric Male Light 24° cone
STANDARD
ISO8434-4
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Hose ID 1 | Tube Metric 1 | Thread Dim 1 | A | B | C | H | Hex 1 | Material Code | |
|---|---|---|---|---|---|---|---|---|---|---|
| 23000408316 | 1/4" | 8L | M14x1,5 | 52 | 18 | 25 | 4.5 | 17 | SS316 | |
| 23000410316 | 1/4" | 10L | M16x1,5 | 53 | 19 | 26 | 4.5 | 17 | SS316 | |
| 23000612316 | 3/8" | 12L | M18x1,5 | 57 | 20 | 27 | 7 | 19 | SS316 | |
| 23000815316 | 1/2" | 15L | M22x1,5 | 61 | 23 | 30 | 10 | 24 | SS316 | |
| 23000818316 | 1/2" | 18L | M26x1,5 | 61 | 23.5 | 31 | 10 | 27 | SS316 | |
| 23001018316 | 5/8" | 18L | M26x1,5 | 65 | 23.5 | 31 | 12 | 27 | SS316 | |
| 23001222316 | 3/4" | 22L | M30x2,0 | 73 | 27.5 | 35 | 15 | 32 | SS316 | |
| 23001628316 | 1" | 28L | M36x2,0 | 85 | 29.5 | 37 | 20 | 41 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
