Series 2400
Hose End x Metric Male 24° cone
STANDARD
ISO8434-4
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

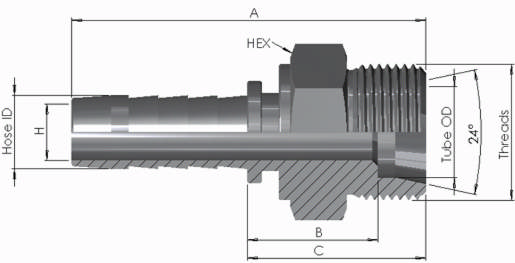

| Product Code | Hose ID 1 | Tube Metric 1 | Thread Dim 1 | A | B | C | H | Hex 1 | Material Code | |
|---|---|---|---|---|---|---|---|---|---|---|
| 24000408316 | 1/4" | 8S | M16x1,5 | 54 | 20 | 27 | 4.5 | 17 | SS316 | |
| 24000410316 | 1/4" | 10S | M18x1,5 | 54 | 19.5 | 27 | 4.5 | 19 | SS316 | |
| 24000612316 | 3/8" | 12S | M20x1,5 | 58 | 21 | 28 | 7 | 22 | SS316 | |
| 24000614316 | 3/8" | 14S | M22x1,5 | 60 | 22 | 30 | 7 | 24 | SS316 | |
| 24000816316 | 1/2" | 16S | M24x1,5 | 63 | 23.5 | 32 | 10 | 27 | SS316 | |
| 24001020316 | 5/8" | 20S | M30x2,0 | 69 | 24.5 | 35 | 12 | 32 | SS316 | |
| 24001220316 | 3/4" | 20S | M30x2,0 | 75 | 26.5 | 37 | 15 | 32 | SS316 | |
| 24001225316 | 3/4" | 25S | M36x2,0 | 77 | 27 | 39 | 15 | 41 | SS316 | |
| 24001625316 | 1" | 25S | M36x2,0 | 89 | 29 | 41 | 20 | 41 | SS316 | |
| 24001630316 | 1" | 30S | M42x2,0 | 91 | 29.5 | 43 | 20 | 46 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
