Series 0700
Hose End x JIC Male
STANDARD
ISO8434-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

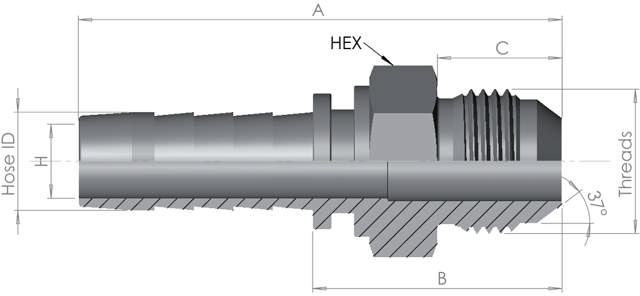

| Product Code | Hose ID 1 | Thread Dim 1 | A | B | C | H | Hex 1 | Material Code | |
|---|---|---|---|---|---|---|---|---|---|
| 07000407316 | 1/4" | 7/16"-20UN | 57 | 30 | 14.5 | 4.5 | 14 | SS316 | |
| 07000408316 | 1/4" | 1/2"-20UN | 57 | 30 | 14.5 | 4.5 | 14 | SS316 | |
| 07000409316 | 1/4" | 9/16"-18UN | 57 | 30 | 14.5 | 4.5 | 17 | SS316 | |
| 07000609316 | 3/8" | 9/16"-18UN | 60 | 30 | 14.5 | 7 | 17 | SS316 | |
| 07000612316 | 3/8" | 3/4"-16UN | 62 | 32 | 16.5 | 7 | 22 | SS316 | |
| 07000812316 | 1/2" | 3/4"-16UN | 64 | 33 | 16.5 | 10 | 22 | SS316 | |
| 07000814316 | 1/2" | 7/8"-14UN | 69 | 38 | 20 | 10 | 24 | SS316 | |
| 07001014316 | 5/8" | 7/8"-14UN | 72 | 38 | 20 | 12 | 24 | SS316 | |
| 07001217316 | 3/4" | 1 1/16"-12UN | 81 | 43 | 22 | 15 | 30 | SS316 | |
| 07001221316 | 3/4" | 1 5/16"-12UN | 81 | 43 | 23 | 15 | 36 | SS316 | |
| 07001617316 | 1" | 1 1/16"-12UN | 91 | 43 | 22 | 15 | 32 | SS316 | |
| 07001621316 | 1" | 1 5/16"-12UN | 91 | 43 | 23 | 20 | 36 | SS316 | |
| 07002026316 | 1 1/4" | 1 5/8"-12UN | 101 | 46 | 24.5 | 24 | 46 | SS316 | |
| 07002430316 | 1 1/2" | 1 7/8"-12UN | 108 | 50 | 27.5 | 30 | 50 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
