Series 0690

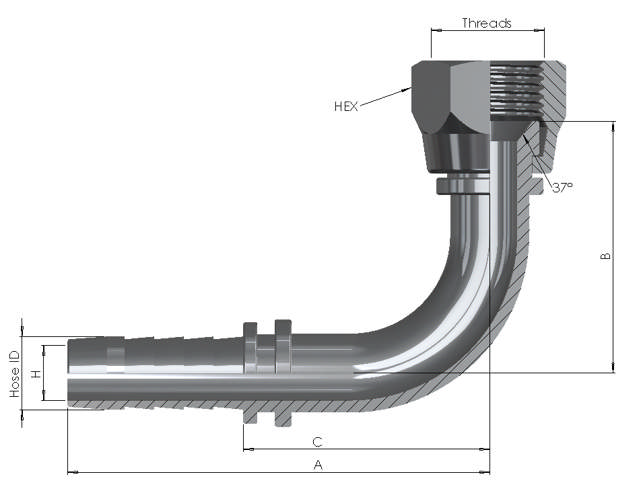

Hose End x JIC Female 90°
STANDARD
ISO8434-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Hose ID 1 | Thread Dim 1 | A | B | C | H | Hex 1 | Material Code | |
|---|---|---|---|---|---|---|---|---|---|
| 06900407316 | 1/4" | 7/16"-20UN | 53 | 30 | 30 | 4.5 | 17 | SS316 | |
| 06900408316 | 1/4" | 1/2"-20UN | 53 | 30 | 30 | 4.5 | 17 | SS316 | |
| 06900409316 | 1/4" | 9/16"-18UN | 53 | 30 | 30 | 4.5 | 19 | SS316 | |
| 06900609316 | 3/8" | 9/16"-18UN | 64 | 37 | 34 | 7 | 19 | SS316 | |
| 06900612316 | 3/8" | 3/4"-16UN | 64 | 37 | 34 | 7 | 24 | SS316 | |
| 06900812316 | 1/2" | 3/4"-16UN | 73 | 47 | 42 | 10 | 24 | SS316 | |
| 06900814316 | 1/2" | 7/8"-14UN | 73 | 47 | 42 | 10 | 27 | SS316 | |
| 06901014316 | 5/8" | 7/8"-14UN | 88 | 50 | 54 | 12 | 27 | SS316 | |
| 06901217316 | 3/4" | 1 1/16"-12UN | 101 | 62 | 63 | 15 | 32 | SS316 | |
| 06901621316 | 1" | 1 5/16"-12UN | 124 | 76 | 76 | 19 | 41 | SS316 | |
| 06902026316 | 1 1/4" | 1 5/8"-12UN | 155 | 90 | 100 | 24 | 50 | SS316 | |
| 06902430316 | 1 1/2" | 1 7/8"-12UN | 175 | 108 | 117 | 30 | 55 | SS316 | |
| 06903240316 | 2" | 2 1/2"-12UN | 225 | 148 | 163 | 40 | 75 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
