Series 0600
Hose End x JIC Female
STANDARD
ISO8434-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

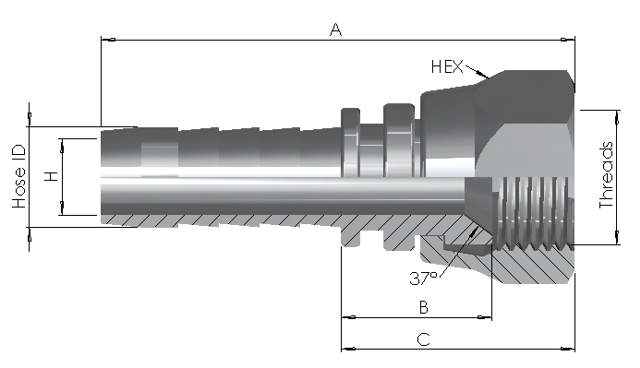

| Product Code | Hose ID 1 | Thread Dim 1 | A | B | C | H | Hex 1 | Material Code | |
|---|---|---|---|---|---|---|---|---|---|
| 06000407316 | 1/4" | 7/16"-20UN | 50 | 16.5 | 23 | 4.5 | 17 | SS316 | |
| 06000408316 | 1/4" | 1/2"-20UN | 50 | 16.5 | 23 | 4.5 | 17 | SS316 | |
| 06000409316 | 1/4" | 9/16"-18UN | 52 | 16.5 | 24 | 4.5 | 19 | SS316 | |
| 06000609316 | 3/8" | 9/16"-18UN | 55 | 16.5 | 24 | 7 | 19 | SS316 | |
| 06000612316 | 3/8" | 3/4"-16UN | 59 | 19 | 29 | 7 | 24 | SS316 | |
| 06000812316 | 1/2" | 3/4"-16UN | 61 | 19 | 29 | 10 | 24 | SS316 | |
| 06000814316 | 1/2" | 7/8"-14UN | 64 | 21 | 33 | 10 | 27 | SS316 | |
| 06000817316 | 1/2" | 1 1/16"-12UN | 68 | 23 | 37 | 10 | 32 | SS316 | |
| 06001014316 | 5/8" | 7/8"-14UN | 67 | 21 | 33 | 12 | 27 | SS316 | |
| 06001017316 | 5/8" | 1 1/16"-12UN | 72 | 23 | 37 | 12 | 32 | SS316 | |
| 06001217316 | 3/4" | 1 1/16"-12UN | 77 | 25 | 39 | 15 | 32 | SS316 | |
| 06001221316 | 3/4" | 1 5/16"-12UN | 78 | 25 | 40 | 15 | 41 | SS316 | |
| 06001621316 | 1" | 1 5/16"-12UN | 89 | 26 | 41 | 20 | 41 | SS316 | |
| 06001626316 | 1" | 1 5/8"-12UN | 94 | 29 | 46 | 20 | 50 | SS316 | |
| 06002026316 | 1 1/4" | 1 5/8"-12UN | 101 | 29 | 46 | 24.5 | 50 | SS316 | |
| 06002430316 | 1 1/2" | 1 7/8"-12UN | 106 | 31 | 49 | 32 | 55 | SS316 | |
| 06003240316 | 2" | 2 1/2"-12UN | 120 | 34 | 57 | 45 | 75 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
