Series 0000

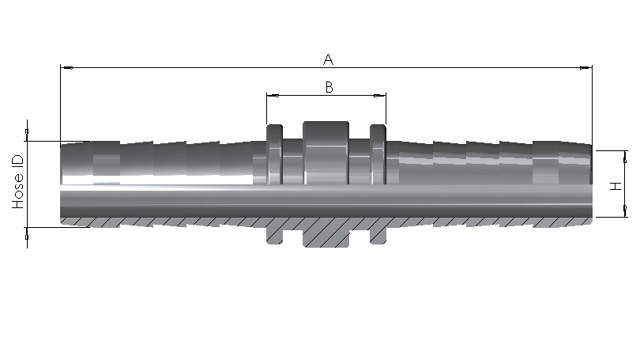

Hose End x Hose End
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Hose ID 1 | Hose ID 2 | A | B | H | Material Code | |
|---|---|---|---|---|---|---|---|
| 00000404316 | 1/4" | 1/4" | 70 | 16 | 4.5 | SS316 | |
| 00000606316 | 3/8" | 3/8" | 76 | 16 | 7 | SS316 | |
| 00000808316 | 1/2" | 1/2" | 80 | 18 | 10 | SS316 | |
| 00001212316 | 3/4" | 3/4" | 95 | 19 | 15 | SS316 | |
| 00001616316 | 1" | 1" | 116 | 20 | 20 | SS316 | |
| 00002020316 | 1 1/4" | 1 1/4" | 130 | 20 | 24.5 | SS316 | |
| 00002424316 | 1 1/2" | 1 1/2" | 138 | 23 | 32 | SS316 | |
| 00003232316 | 2" | 2" | 150 | 26 | 45 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
