Series 0400

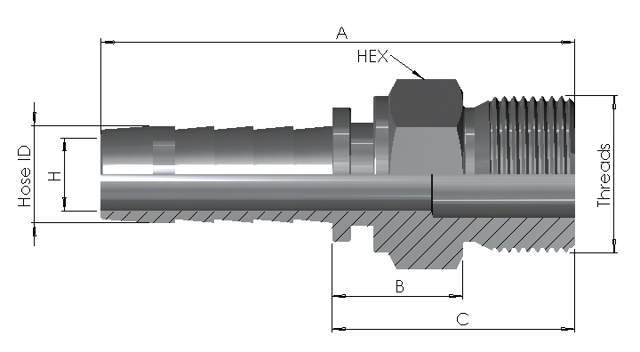

Hose End x BSP Male Flatface
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Hose ID 1 | Thread Dim 1 | A | B | C | H | Hex 1 | Material Code | |
|---|---|---|---|---|---|---|---|---|---|
| 04000404316 | 1/4" | G 1/4" | 54 | 16 | 27 | 4.5 | 19 | SS316 | |
| 04000406316 | 1/4" | G 3/8" | 57 | 17 | 30 | 4.5 | 22 | SS316 | |
| 04000604316 | 3/8" | G 1/4" | 57 | 16 | 27 | 6.5 | 19 | SS316 | |
| 04000606316 | 3/8" | G 3/8" | 60 | 17 | 30 | 7 | 22 | SS316 | |
| 04000608316 | 3/8" | G 1/2" | 63 | 18.5 | 33.5 | 7 | 27 | SS316 | |
| 04000806316 | 1/2" | G 3/8" | 61.5 | 30 | 17 | 9.5 | 22 | SS316 | |
| 04000808316 | 1/2" | G 1/2" | 64.5 | 18.5 | 33.5 | 10 | 27 | SS316 | |
| 04000812316 | 1/2" | G 3/4" | 68.5 | 21 | 38 | 10 | 27 | SS316 | |
| 04001208316 | 3/4" | G 1/2" | 71.5 | 18.5 | 33.5 | 15 | 27 | SS316 | |
| 04001212316 | 3/4" | G 3/4" | 76 | 21 | 38 | 15 | 27 | SS316 | |
| 04001216316 | 3/4" | G 1" | 81 | 21 | 38 | 15 | 36 | SS316 | |
| 04001616316 | 1" | G 1" | 91 | 21 | 43 | 20 | 36 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
