Series 0200

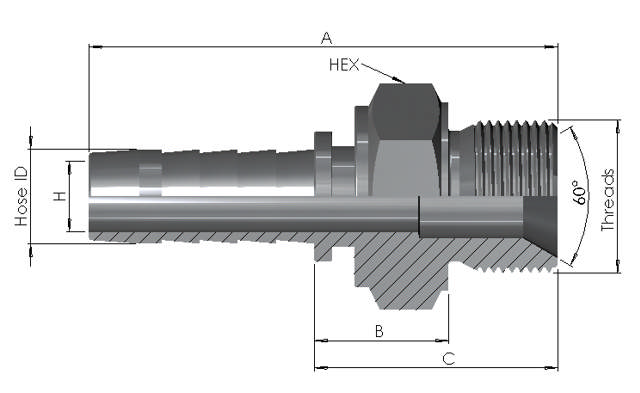

Hose End x BSP Male
STANDARD
ISO1179 / BS5200
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Hose ID 1 | Thread Dim 1 | A | B | C | H | Hex 1 | Material Code | |
|---|---|---|---|---|---|---|---|---|---|
| 02000404316 | 1/4" | G 1/4" | 54 | 16 | 27 | 4.5 | 19 | SS316 | |
| 02000406316 | 1/4" | G 3/8" | 57 | 17 | 30 | 4.5 | 22 | SS316 | |
| 02000408316 | 1/4" | G 1/2" | 60 | 18.5 | 33.5 | 4.5 | 27 | SS316 | |
| 02000604316 | 3/8" | G 1/4" | 57 | 16 | 27 | 6.5 | 19 | SS316 | |
| 02000606316 | 3/8" | G 3/8" | 60 | 17 | 30 | 7 | 22 | SS316 | |
| 02000608316 | 3/8" | G 1/2" | 63 | 18.5 | 33.5 | 7 | 27 | SS316 | |
| 02000806316 | 1/2" | G 3/8" | 61.5 | 30 | 17 | 9.5 | 22 | SS316 | |
| 02000808316 | 1/2" | G 1/2" | 64.5 | 18.5 | 33.5 | 10 | 27 | SS316 | |
| 02000810316 | 1/2" | G 5/8" | 67 | 19 | 35 | 10 | 30 | SS316 | |
| 02000812316 | 1/2" | G 3/4" | 69 | 22 | 39 | 10 | 32 | SS316 | |
| 02000816316 | 1/2" | G 1" | 72 | 23 | 42 | 10 | 41 | SS316 | |
| 02001008316 | 5/8" | G 1/2" | 68 | 18.5 | 33.5 | 12 | 27 | SS316 | |
| 02001010316 | 5/8" | G 5/8" | 70 | 20 | 36 | 12 | 30 | SS316 | |
| 02001012316 | 5/8" | G 3/4" | 72 | 22 | 39 | 12 | 32 | SS316 | |
| 02001208316 | 3/4" | G 1/2" | 73 | 18.5 | 33.5 | 15 | 27 | SS316 | |
| 02001210316 | 3/4" | G 5/8" | 75 | 20 | 36 | 15 | 30 | SS316 | |
| 02001212316 | 3/4" | G 3/4" | 77 | 22 | 39 | 15 | 32 | SS316 | |
| 02001216316 | 3/4" | G 1" | 81 | 24 | 43 | 15 | 41 | SS316 | |
| 02001612316 | 1" | G 3/4" | 87 | 22 | 39 | 15 | 32 | SS316 | |
| 02001616316 | 1" | G 1" | 91 | 24 | 43 | 20 | 41 | SS316 | |
| 02002020316 | 1 1/4" | G 1 1/4" | 102 | 25 | 47 | 24.5 | 50 | SS316 | |
| 02002424316 | 1 1/2" | G 1 1/2" | 105 | 25.5 | 47.5 | 32 | 55 | SS316 | |
| 02003232316 | 2" | G 2" | 118 | 30 | 56 | 45 | 70 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
