Series 0300
Hose End x BSP Female Flatface
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

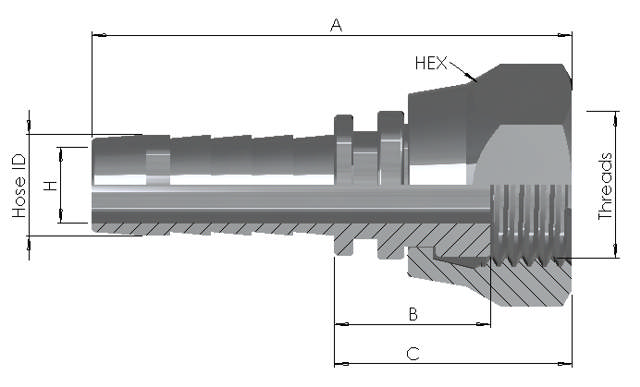

| Product Code | Hose ID 1 | Thread Dim 1 | A | B | C | H | Hex 1 | Material Code | |
|---|---|---|---|---|---|---|---|---|---|
| 03000404316 | 1/4" | G 1/4" | 51 | 15 | 22 | 4.5 | 19 | SS316 | |
| 03000406316 | 1/4" | G 3/8" | 55 | 19 | 26 | 4.5 | 22 | SS316 | |
| 03000604316 | 3/8" | G 1/4" | 54 | 16 | 23 | 7 | 19 | SS316 | |
| 03000606316 | 3/8" | G 3/8" | 58 | 19 | 26 | 7 | 22 | SS316 | |
| 03000608316 | 3/8" | G 1/2" | 60 | 20 | 27 | 7 | 27 | SS316 | |
| 03000806316 | 1/2" | G 3/8" | 59 | 20 | 26 | 10 | 22 | SS316 | |
| 03000808316 | 1/2" | G 1/2" | 61 | 20 | 27 | 10 | 27 | SS316 | |
| 03000812316 | 1/2" | G 3/4" | 65 | 20 | 30 | 10 | 32 | SS316 | |
| 03001208316 | 3/4" | G 1/2" | 70 | 23 | 30 | 15 | 27 | SS316 | |
| 03001212316 | 3/4" | G 3/4" | 73 | 22 | 32 | 15 | 32 | SS316 | |
| 03001216316 | 3/4" | G 1" | 73 | 22 | 32 | 15 | 41 | SS316 | |
| 03001616316 | 1" | G 1" | 83 | 22 | 32 | 20 | 41 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
