Series 0100

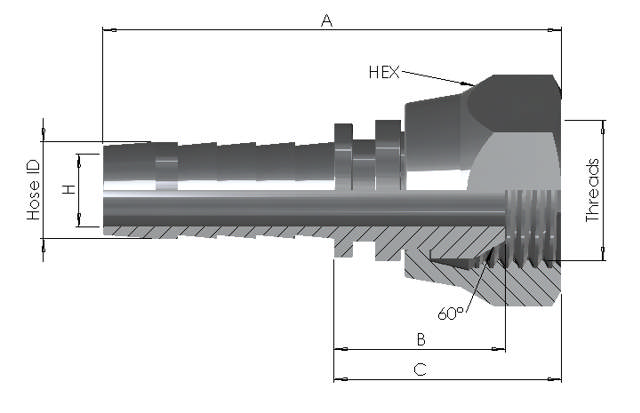

Hose End x BSP Female
STANDARD
ISO1179 / BS5200
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Hose ID 1 | Thread Dim 1 | A | B | C | H | Hex 1 | Material Code | |
|---|---|---|---|---|---|---|---|---|---|
| 01000404316 | 1/4" | G 1/4" | 51 | 17 | 24 | 4.5 | 19 | SS316 | |
| 01000406316 | 1/4" | G 3/8" | 55 | 21 | 28 | 4.5 | 22 | SS316 | |
| 01000408316 | 1/4" | G 1/2" | 56.5 | 22.5 | 29.5 | 4.5 | 22 | SS316 | |
| 01000604316 | 3/8" | G 1/4" | 54 | 18 | 25 | 7 | 19 | SS316 | |
| 01000606316 | 3/8" | G 3/8" | 58 | 21 | 28 | 7 | 22 | SS316 | |
| 01000608316 | 3/8" | G 1/2" | 60 | 23 | 30 | 7 | 27 | SS316 | |
| 01000806316 | 1/2" | G 3/8" | 59 | 22 | 28 | 10 | 22 | SS316 | |
| 01000808316 | 1/2" | G 1/2" | 61 | 23 | 30 | 10 | 27 | SS316 | |
| 01000810316 | 1/2" | G 5/8" | 62 | 23 | 31 | 10 | 30 | SS316 | |
| 01000812316 | 1/2" | G 3/4" | 65 | 23 | 33 | 10 | 32 | SS316 | |
| 01000816316 | 1/2" | G 1" | 65 | 25 | 35 | 10 | 41 | SS316 | |
| 01001008316 | 5/8" | G 1/2" | 65 | 23 | 30 | 10 | 27 | SS316 | |
| 01001010316 | 5/8" | G 5/8" | 66 | 23 | 32 | 12 | 30 | SS316 | |
| 01001012316 | 5/8" | G 3/4" | 68 | 24 | 34 | 12 | 32 | SS316 | |
| 01001208316 | 3/4" | G 1/2" | 70 | 25 | 32 | 15 | 27 | SS316 | |
| 01001210316 | 3/4" | G 5/8" | 71 | 24 | 32 | 15 | 30 | SS316 | |
| 01001212316 | 3/4" | G 3/4" | 73 | 25 | 35 | 15 | 32 | SS316 | |
| 01001216316 | 3/4" | G 1" | 73 | 25 | 35 | 15 | 41 | SS316 | |
| 01001612316 | 1" | G 3/4" | 83 | 25 | 35 | 20 | 41 | SS316 | |
| 01001616316 | 1" | G 1" | 83 | 25 | 35 | 20 | 41 | SS316 | |
| 01002020316 | 1 1/4" | G 1 1/4" | 97 | 29 | 42 | 24.5 | 50 | SS316 | |
| 01002424316 | 1 1/2" | G 1 1/2" | 102 | 32 | 45 | 32 | 55 | SS316 | |
| 01003232316 | 2" | G 2" | 114 | 36 | 52 | 45 | 75 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
