Series 4204

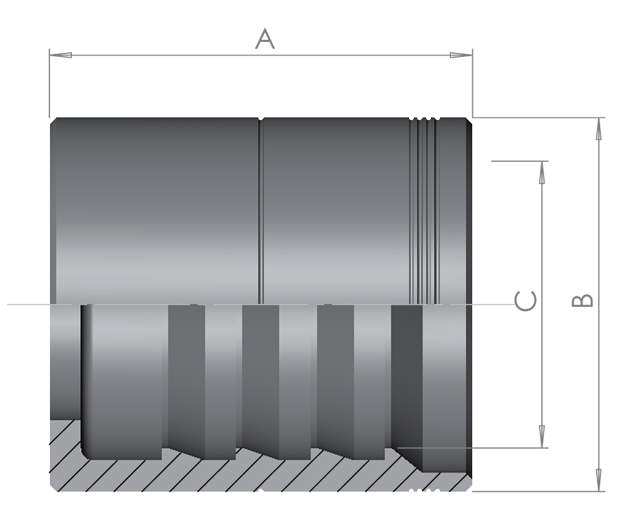

Crimp Sleeve 4Wire Skive
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Hose ID 1 | A | B | C | Material Code | |
|---|---|---|---|---|---|---|
| 42040404316 | 1/4" | 30.5 | 24 | 16 | SS316 | |
| 42040606316 | 3/8" | 32 | 25 | 18.8 | SS316 | |
| 42040808316 | 1/2" | 34 | 30 | 23 | SS316 | |
| 42041212316 | 3/4" | 42 | 38 | 30.5 | SS316 | |
| 42041616316 | 1" | 60 | 46 | 37.3 | SS316 | |
| 42042020316 | 1 1/4" | 66 | 56 | 46.5 | SS316 | |
| 42042424316 | 1 1/2" | 76.5 | 62 | 50 | SS316 | |
| 42043232316 | 2" | 80 | 76 | 64.5 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
