Series 4202
Crimp Sleeve 2Wire Skive
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

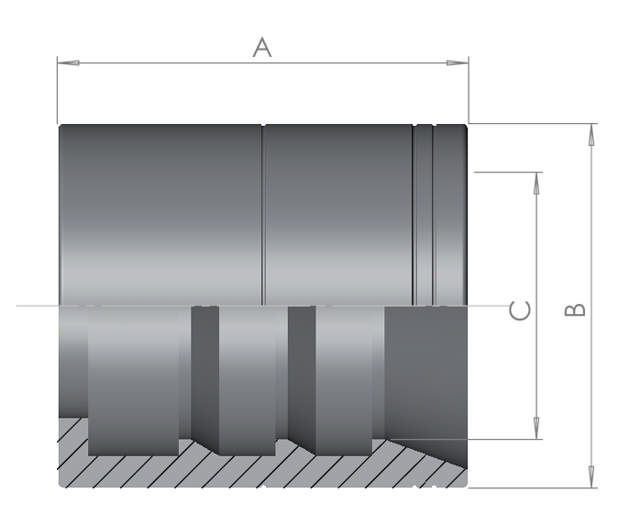

| Product Code | Hose ID 1 | A | B | C | Material Code | |
|---|---|---|---|---|---|---|
| 42020404316 | 1/4" | 30 | 20.6 | 14.2 | SS316 | |
| 42020606316 | 3/8" | 32 | 25 | 18.2 | SS316 | |
| 42020808316 | 1/2" | 34 | 30 | 22 | SS316 | |
| 42021010316 | 5/8" | 37 | 33 | 25.5 | SS316 | |
| 42021212316 | 3/4" | 43 | 38 | 29 | SS316 | |
| 42021616316 | 1" | 50 | 45 | 36.5 | SS316 | |
| 42022020316 | 1 1/4" | 59 | 55.5 | 45 | SS316 | |
| 42022424316 | 1 1/2" | 63 | 62 | 52 | SS316 | |
| 42023232316 | 2" | 80 | 76 | 64.5 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
