Series 4102
Crimp Sleeve 2Wire Non-Skive
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

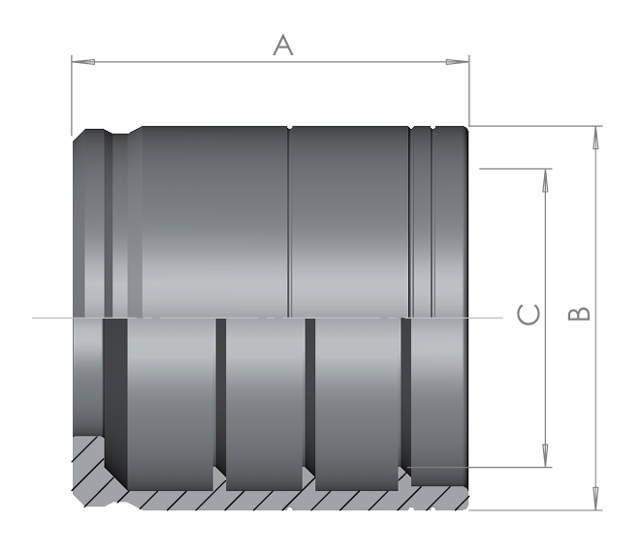

| Product Code | Hose ID 1 | A | B | C | Material Code | |
|---|---|---|---|---|---|---|
| 41020404316 | 1/4" | 25 | 23 | 16 | SS316 | |
| 41020606316 | 3/8" | 28 | 27 | 20 | SS316 | |
| 41020808316 | 1/2" | 31 | 30 | 23.5 | SS316 | |
| 41021010316 | 5/8" | 31 | 33.2 | 26.5 | SS316 | |
| 41021212316 | 3/4" | 32 | 37 | 30 | SS316 | |
| 41021616316 | 1" | 41 | 48 | 39 | SS316 | |
| 41022020316 | 1 1/4" | 48 | 60 | 49.5 | SS316 | |
| 41022424316 | 1 1/2" | 48 | 67 | 56 | SS316 | |
| 41023232316 | 2" | 54 | 80 | 68.8 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
