Series 4101
Crimp Sleeve 1Wire Non-Skive
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

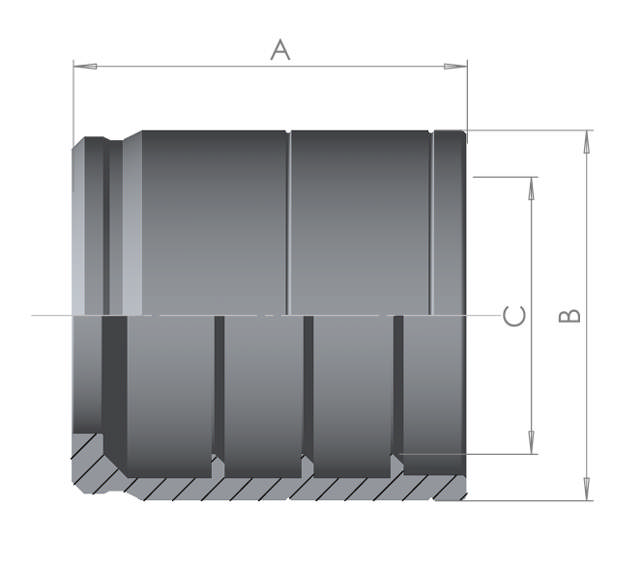

| Product Code | Hose ID 1 | A | B | C | Material Code | |
|---|---|---|---|---|---|---|
| 41010404316 | 1/4" | 25 | 21.5 | 15 | SS316 | |
| 41010606316 | 3/8" | 28 | 25 | 18.2 | SS316 | |
| 41010808316 | 1/2" | 31 | 29 | 21.7 | SS316 | |
| 41011010316 | 5/8" | 31 | 32 | 25 | SS316 | |
| 41011212316 | 3/4" | 32 | 36 | 28.5 | SS316 | |
| 41011616316 | 1" | 41 | 45 | 36.5 | SS316 | |
| 41012020316 | 1 1/4" | 41 | 55 | 45 | SS316 | |
| 41012424316 | 1 1/2" | 45.5 | 63 | 52 | SS316 | |
| 41013232316 | 2" | 45.5 | 77.5 | 65.3 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
