Series IL2800
Interlock Hose End x SAE6000PSI
STANDARD
ISO6162-2/SAE J518
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

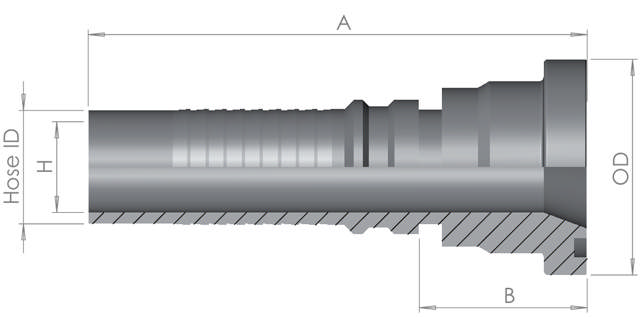

| Product Code | Hose ID 1 | SAE6000 | A | B | H | OD | Material Code | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| IL28001212316 | 3/4" | 3/4" | 112 | 50 | 14 | 41.3 | SS316 | |
| IL28001616316 | 1" | 1" | 122 | 50 | 19 | 47.6 | SS316 | |
| IL28002020316 | 1 1/4" | 1 1/4" | 146 | 58 | 25 | 54 | SS316 | |
| IL28002424316 | 1 1/2" | 1 1/2" | 154 | 61 | 31 | 63.5 | SS316 | |
| IL28003232316 | 2" | 2" | 171 | 73 | 42 | 79.4 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
