Series IL1100

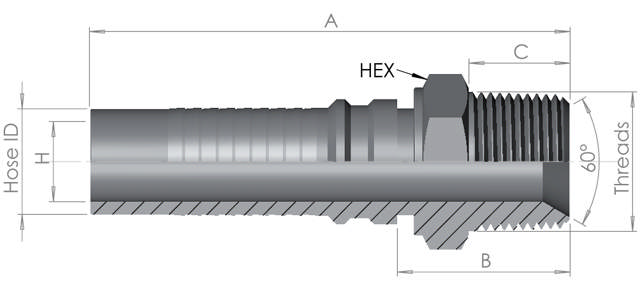

Interlock Hose End x NPT Male
STANDARD
ANSI/ASME B1.20.1
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Hose ID 1 | Thread Dim 1 | A | B | C | H | Hex 1 | Material Code | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| IL11001212316 | 3/4" | 3/4"NPT | 102 | 40 | 20 | 14 | 27 | SS316 | |
| IL11001616316 | 1" | 1"NPT | 119 | 47 | 24 | 19 | 36 | SS316 | |
| IL11002020316 | 1 1/4" | 1 1/4"NPT | 136 | 48 | 24.5 | 25 | 46 | SS316 | |
| IL11002424316 | 1 1/2" | 1 1/2"NPT | 144 | 51 | 25.5 | 31 | 50 | SS316 | |
| IL11003232316 | 2" | 2"NPT | 162 | 64 | 32 | 42 | 65 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
