Series IL0700

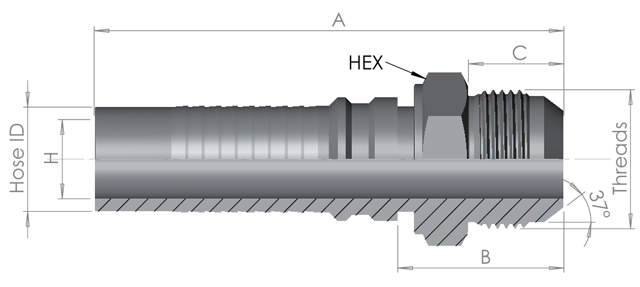

Interlock Hose End x JIC Male
STANDARD
ISO8434-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Hose ID 1 | Thread Dim 1 | A | B | C | H | Hex 1 | Material Code | |
|---|---|---|---|---|---|---|---|---|---|
| IL07001217316 | 3/4" | 1 1/16"-12UN | 103 | 41 | 22 | 14 | 30 | SS316 | |
| IL07001621316 | 1" | 1 5/16"-12UN | 113 | 41 | 23 | 19 | 36 | SS316 | |
| IL07002026316 | 1 1/4" | 1 5/8"-12UN | 132 | 44 | 24.5 | 25 | 46 | SS316 | |
| IL07002430316 | 1 1/2" | 1 7/8"-12UN | 142 | 48 | 27.5 | 31 | 50 | SS316 | |
| IL07003240316 | 2" | 2 1/2"-12UN | 162 | 64 | 34 | 42 | 65 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
