Series IL0645

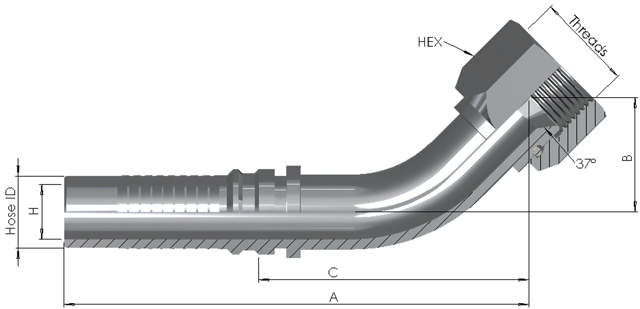

Interlock Hose End x JIC Female 45°
STANDARD
ISO8434-2
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | Hose ID 1 | Thread Dim 1 | A | B | C | H | Hex 1 | Material Code | |
|---|---|---|---|---|---|---|---|---|---|
| IL06451217316 | 3/4" | 1 1/16"-12UN | 136 | 29 | 74 | 14 | 32 | SS316 | |
| IL06451621316 | 1" | 1 5/16"-12UN | 162 | 34 | 90 | 19 | 41 | SS316 | |
| IL06452026316 | 1 1/4" | 1 5/8"-12UN | 203 | 39 | 115 | 24 | 50 | SS316 | |
| IL06452430316 | 1 1/2" | 1 7/8"-12UN | 227 | 51 | 133 | 30 | 55 | SS316 | |
| IL06453240316 | 2" | 2 1/2"-12UN | 281 | 68 | 183 | 40 | 75 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
