Series IL0145
Interlock Hose End x BSP Female 45°
STANDARD
ISO1179 / BS5200
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5

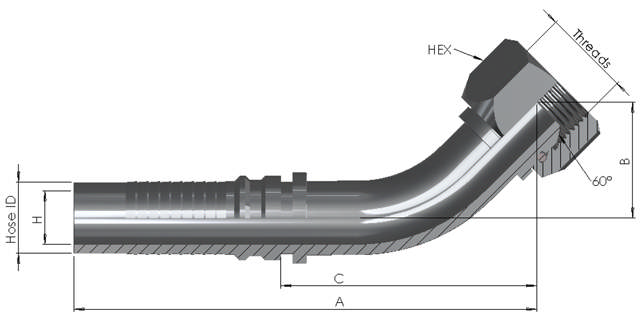

| Product Code | Hose ID 1 | Thread Dim 1 | A | B | C | H | Hex 1 | Material Code | |
|---|---|---|---|---|---|---|---|---|---|
| IL01451212316 | 3/4" | G 3/4" | 136 | 33 | 74 | 14 | 32 | SS316 | |
| IL01451616316 | 1" | G 1" | 162 | 37 | 90 | 19 | 41 | SS316 | |
| IL01452020316 | 1 1/4" | G 1 1/4" | 198 | 43 | 110 | 24 | 50 | SS316 | |
| IL01452424316 | 1 1/2" | G 1 1/2" | 225 | 53 | 131 | 30 | 55 | SS316 | |
| IL01453232316 | 2" | G 2" | 279 | 68 | 181 | 40 | 75 | SS316 |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
