Series HMF6300 WP 15000PSI

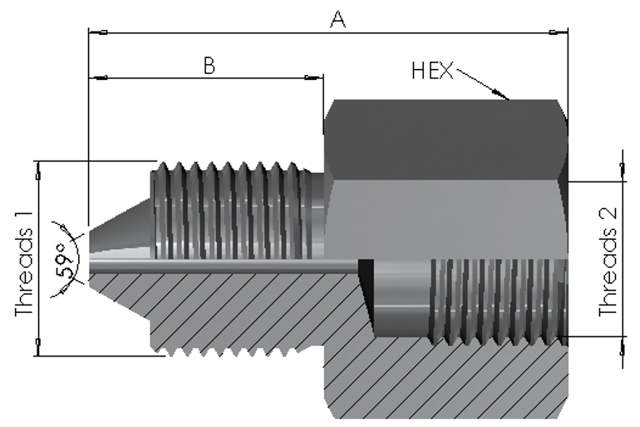

High Pressure Male x BSP Female Fixed
STANDARD
High Pressure and ISO1179
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | HP Size 1 | Thread Dim 1 | Thread Dim 2 | A | B | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| HMF63000404316 | 1/4" (04) | 9/16"-18UN | G 1/4" | 38 | 16 | 24 | SS316 | 15000PSI | |
| HMF63000406316 | 1/4" (04) | 9/16"-18UN | G 3/8" | 40 | 16 | 27 | SS316 | 15000PSI | |
| HMF63000408316 | 1/4" (04) | 9/16"-18UN | G 1/2" | 43 | 16 | 36 | SS316 | 15000PSI | |
| HMF63000604316 | 3/8" (06) | 3/4"-16UN | G 1/4" | 47 | 23 | 24 | SS316 | 15000PSI | |
| HMF63000606316 | 3/8" (06) | 3/4"-16UN | G 3/8" | 47 | 23 | 27 | SS316 | 15000PSI | |
| HMF63000608316 | 3/8" (06) | 3/4"-16UN | G 1/2" | 50 | 23 | 36 | SS316 | 15000PSI | |
| HMF63000904316 | 9/16" (09) | 1 1/8"-12UN | G 1/4" | 37 | 27 | 30 | SS316 | 15000PSI | |
| HMF63000906316 | 9/16" (09) | 1 1/8"-12UN | G 3/8" | 39 | 27 | 30 | SS316 | 15000PSI | |
| HMF63000908316 | 9/16" (09) | 1 1/8"-12UN | G 1/2" | 54 | 27 | 36 | SS316 | 15000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
