Series HF9500 WP 15000PSI

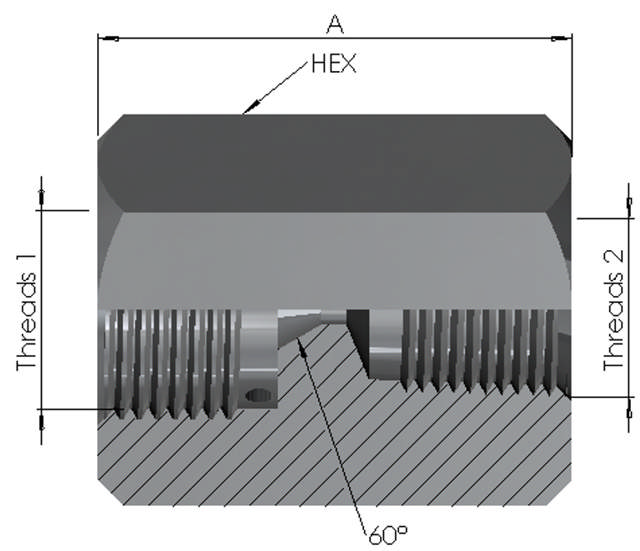

High Pressure Female x NPT Female 15K
STANDARD
High Pressure and ANSI/ASME B1.20.1
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | HP Size 1 | Thread Dim 1 | Thread Dim 2 | A | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| HF95000404316 | 1/4" (04) | 9/16"-18UN | 1/4"NPT | 35 | 24 | SS316 | 15000PSI | |
| HF95000406316 | 1/4" (04) | 9/16"-18UN | 3/8"NPT | 36 | 27 | SS316 | 15000PSI | |
| HF95000408316 | 1/4" (04) | 9/16"-18UN | 1/2"NPT | 40 | 36 | SS316 | 15000PSI | |
| HF95000604316 | 3/8" (06) | 3/4"-16UN | 1/4"NPT | 39 | 30 | SS316 | 15000PSI | |
| HF95000606316 | 3/8" (06) | 3/4"-16UN | 3/8"NPT | 40 | 30 | SS316 | 15000PSI | |
| HF95000608316 | 3/8" (06) | 3/4"-16UN | 1/2"NPT | 44 | 36 | SS316 | 15000PSI | |
| HF95000904316 | 9/16" (09) | 1 1/8"-12UN | 1/4"NPT | 45 | 36 | SS316 | 15000PSI | |
| HF95000906316 | 9/16" (09) | 1 1/8"-12UN | 3/8"NPT | 46 | 36 | SS316 | 15000PSI | |
| HF95000908316 | 9/16" (09) | 1 1/8"-12UN | 1/2"NPT | 50 | 36 | SS316 | 15000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
