Series HF6300 WP 15000PSI

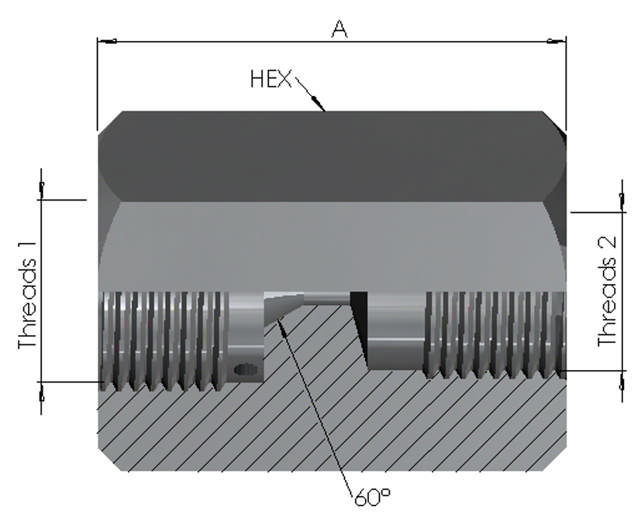

High Pressure Female x BSP Female Fixed 15K
STANDARD
High Pressure and ISO1179
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | HP Size 1 | Thread Dim 1 | Thread Dim 2 | A | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| HF6300 0404 316 | 1/4" (04) | 9/16"-18UN | G 1/4" | 32 | 24 | SS316 | 15000PSI | |
| HF6300 0406 316 | 1/4" (04) | 9/16"-18UN | G 3/8" | 34 | 27 | SS316 | 15000PSI | |
| HF6300 0408 316 | 1/4" (04) | 9/16"-18UN | G 1/2" | 38 | 36 | SS316 | 15000PSI | |
| HF6300 0604 316 | 3/8" (06) | 3/4"-16UN | G 1/4" | 34 | 30 | SS316 | 15000PSI | |
| HF6300 0606 316 | 3/8" (06) | 3/4"-16UN | G 3/8" | 36 | 30 | SS316 | 15000PSI | |
| HF6300 0608 316 | 3/8" (06) | 3/4"-16UN | G 1/2" | 40 | 36 | SS316 | 15000PSI | |
| HF6300 0904 316 | 9/16" (09) | 1 1/8"-12UN | G 1/4" | 46 | 36 | SS316 | 15000PSI | |
| HF6300 0906 316 | 9/16" (09) | 1 1/8"-12UN | G 3/8" | 48 | 36 | SS316 | 15000PSI | |
| HF6300 0908 316 | 9/16" (09) | 1 1/8"-12UN | G 1/2" | 50 | 36 | SS316 | 15000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
