Series HF-HF WP 60000PSI

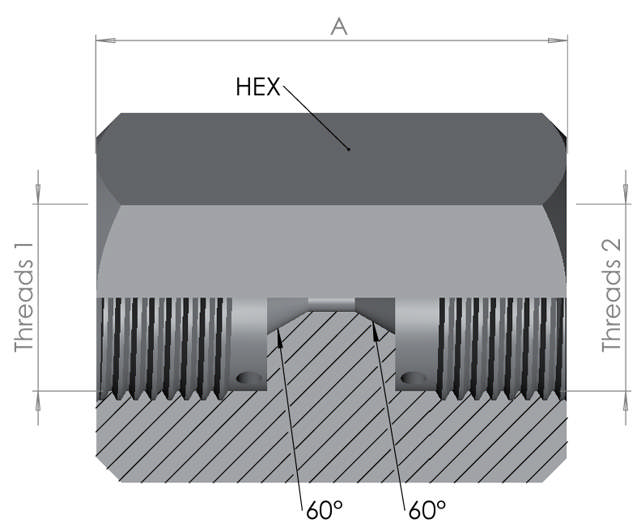

High Pressure Female/Female 60K
STANDARD
High Pressure
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | HP Size 1 | HP Size 2 | Thread Dim 1 | Thread Dim 2 | A | Hex 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| HF04HF04316 | 1/4" (04) | 1/4" (04) | 9/16"-18UN | 9/16"-18UN | 30 | 22 | SS316 | 60000PSI | |
| HF04HF06316 | 1/4" (04) | 3/8" (06) | 9/16"-18UN | 3/4"-16UN | 36 | 30 | SS316 | 60000PSI | |
| HF04HF09316 | 1/4" (04) | 9/16" (09) | 9/16"-18UN | 1 1/8"-12UN | 44 | 36 | SS316 | 60000PSI | |
| HF06HF06316 | 3/8" (06) | 3/8" (06) | 3/4"-16UN | 3/4"-16UN | 44 | 30 | SS316 | 60000PSI | |
| HF06HF09316 | 3/8" (06) | 9/16" (09) | 3/4"-16UN | 1 1/8"-12UN | 48 | 36 | SS316 | 60000PSI | |
| HF09HF09316 | 9/16" (09) | 9/16" (09) | 1 1/8"-12UN | 1 1/8"-12UN | 50 | 36 | SS316 | 60000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
