Series HPC WP 60000PSI

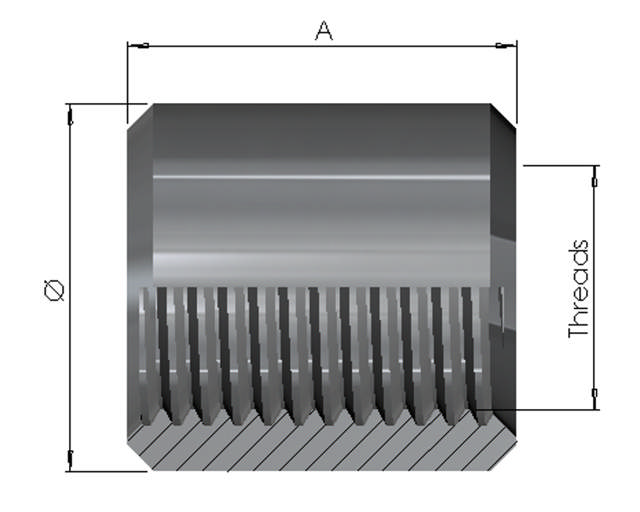

High Pressure Collar
STANDARD
High Pressure
DEFAULT MATERIAL
Aisi316L (Alloy 1.4404 / UNS S31603 / 316L)
Also available in
Duplex
SuperDuplex (750)
SuperDuplex (760)
SMO254®(6MO)
S165M
Hastelloy®C-276
Inconel®625
Inconel®718
Incoloy®925
17-4PH
Nitronic®50
Nitronic®60
Titan Grad2
Titan Grad5
| Product Code | HP Size 1 | Thread Dim 1 | A | O 1 | Material Code | Work Pressure | Add to inquiry |
|---|---|---|---|---|---|---|---|
| HP04C316 | 1/4" (04) | 1/4"-28UN | 9.5 | 9.6 | SS316 | 60000PSI | |
| HP06C316 | 3/8" (06) | 3/8"-24UN | 13.5 | 12.8 | SS316 | 60000PSI | |
| HP09C316 | 9/16" (09) | 9/16"-18UN | 16 | 20.6 | SS316 | 60000PSI |
Other dimensions and combinations are available upon request. We maintain a large inventory for fast delivery and offer custom products in a variety of materials.
HS-Code | 73079900 |
Country of origin | Norway |
